FR7 7 Inch Long Range FPV frame V6

FR7 7 Inch Long Range FPV frame V6

Regular price $69.99 USD
Regular price Sale price $69.99 USD
Sale Sold out
Shipping calculated at checkout.
Kit Options
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.

Sign up to be notified when back in stock!

Notify Me

The FR7 v6 long distance frame was developed by Jeremy Mariscal, a aerospace mechanical engineer and FPV pilot.  With Jeremy's blessing, we are the only FPV store to sell this phenomenal frame.

The version 6 of the FR7 frame needs either the carbon uprights kit (highly recommended!) or a 3D printed mount for the HD camera and FPV camera.  You can purchase the frame with the uprights kits (what we suggest) or you can purchase the frame without and print them yourself.

There are camera mounts and other 3D prints available here.

FR7 Philosophy

The FR7 frame is specifically built to be a mid to long range cruiser, able to accommodate larger (4-5ooomAh 6s) batteries to be able to get miles out ... and back, all while producing stable, clean footage with no props in view.

This long range FPV frame pulls from innovations already made, and combines them into something truly special:

  • Modified deadcat-style arm geometry keeps your props out of view (Project 399 SuperG+)
  • GoPro or other HD cam placed under the FPV camera increases stability by lowering the center of gravity, and also gives you super low perspective HD footage  (MB Epic)
  • The split bottom plate allows the HD camera to be as low as possible (Impulse RC Reverb and SuperG+)
  • Solid, interlocking arms fit tightly and minimize arm movement (Impulse RC Alien)

FR7 V6 Features

  • Solid, strong construction using 6mm thick arms and 2mm/2.5mm plates make for a stable, rigid, smooth-flying frame that minimizes frame resonance and gyro noise
  • Dual 30.5 x 30.5 stacks
  • Big top plate to carry those long-range batteries, fitting up to a 5000mAh 6s pack.
  • Mounting for both horizontal front and vertical rear receiver antennas for diversity receivers.
  • Platypuss Tail Module:  Mount your VTX, receiver, VTX antenna, vertical receiver antenna and GPS receiver all in one unit, or alternatively use in combination with the rear 30.5x30.5 accessory stack.
  • Multiple Camera Upright options:  Allows use of full size, mini and micro cameras
  • Top or bottom mount battery
  • Frame Weight:  ~185g (not including prints)
  • Lots of space and room to mount components!

Included with FR7 version 6 kit

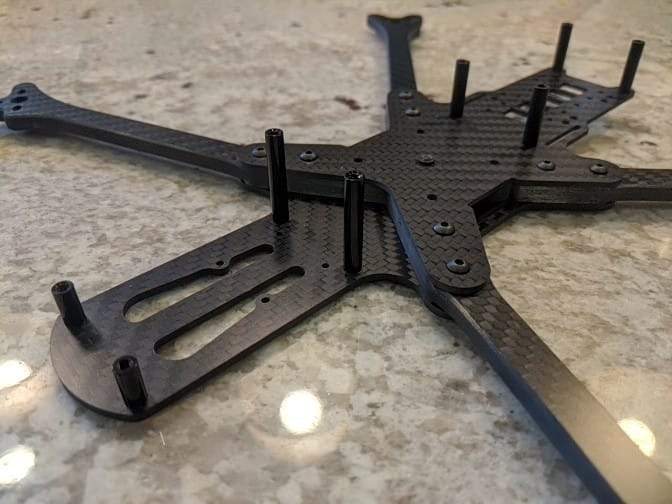

Basic Carbon Frame Kit:

  • 1 x 2.5mm Top Plate
  • 1 x 2.5mm Bottom Plate
  • 1 x 2mm Brace Plate
  • 2 x 6mm Front Arms
  • 2 x 6mm Rear Arms
  • 1 x Hardware Pack

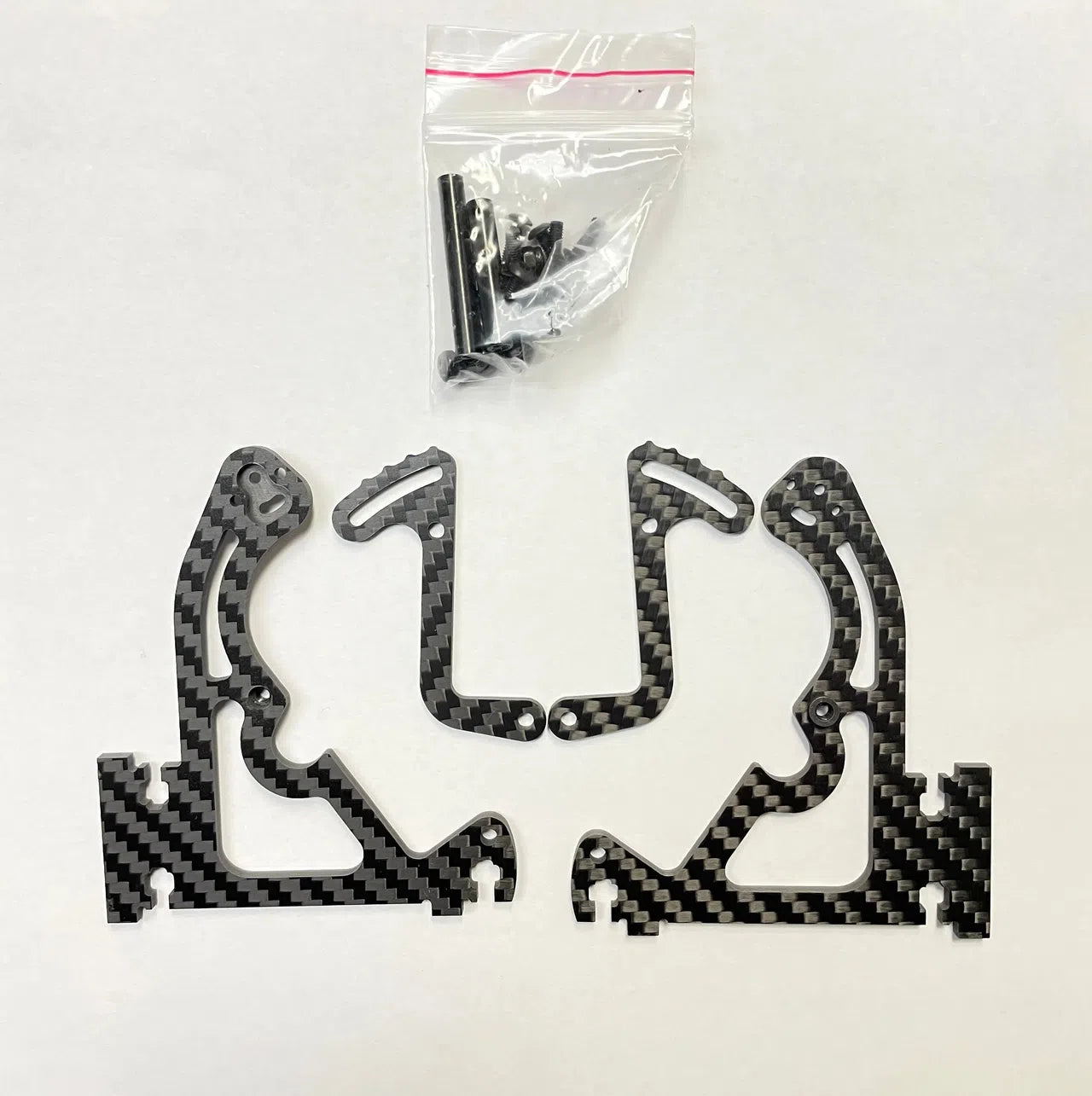

Carbon Upright Kit:

  • 2x Upright Plate
  • 2x Adjustable Camera Plate
  • 1x Hardware pack

Sample builds:
